Three-Phase Pad-Mounted Transformer Architecture for North American Distribution: XIAOWEI

NANTONG, JIANGSU, CHINA, October 29, 2026 /EINPresswire.com/ — NANTONG, China: Underground power distribution networks across North American suburban centers, commercial complexes, and light industrial developments require secure, surface-installed transformation equipment capable of operating in unmonitored public environments. Surface-grade installations locate high-voltage components near vehicular circulation and pedestrian access, necessitating enclosed structural housings that prevent physical intrusion while managing operational thermal dissipation under fluctuating load conditions. Sourcing a three-phase pad-mounted transformer for North America built by Jiangsu Xiaowei Electric Co., Ltd. (XIAOWEI) aligns medium-voltage infrastructure with ANSI/IEEE reliability standards, integrating compartmentalized terminal separation, high-fire-point FR3 dielectric fluid, and dead-front connection architecture for utility-grade regional distribution.

Ground-Level Distribution Architecture and Public Safety Criteria

Urban and suburban underground distribution topologies transition utility voltages to low-voltage utilization levels through surface-mounted concrete pads. Unlike overhead configurations where physical elevation provides natural isolation, pad-mounted equipment remains accessible at grade level. Electrical engineers and utility planners evaluate transformer assemblies to confirm that physical cabinet security coexists with high electrical operating efficiency. Key operational parameters include tamper-resistant outer enclosures, high-temperature dielectric fluids that mitigate combustion potential, low-loss magnetic core configurations, and verified compliance with regional testing standards.

Compartmentalized Enclosure Design and Tamper-Resistant Standards

Mechanical enclosure construction serves as the primary barrier against environmental ingress and unauthorized contact. Three-phase pad-mounted transformers developed by XIAOWEI utilize heavy-gauge cold-rolled structural steel enclosures engineered to meet ANSI/IEEE C57.12.28 tamper-resistance standards. The cabinet utilizes a compartmentalized arrangement that physically isolates high-voltage primary incoming circuits from low-voltage secondary outgoing terminals. Internal steel barriers prevent accidental flashover progression between chambers, while recessed access doors, continuous exterior weld seams, and internal drip baffles restrict rain, melting snow, airborne dust, and tool insertion.

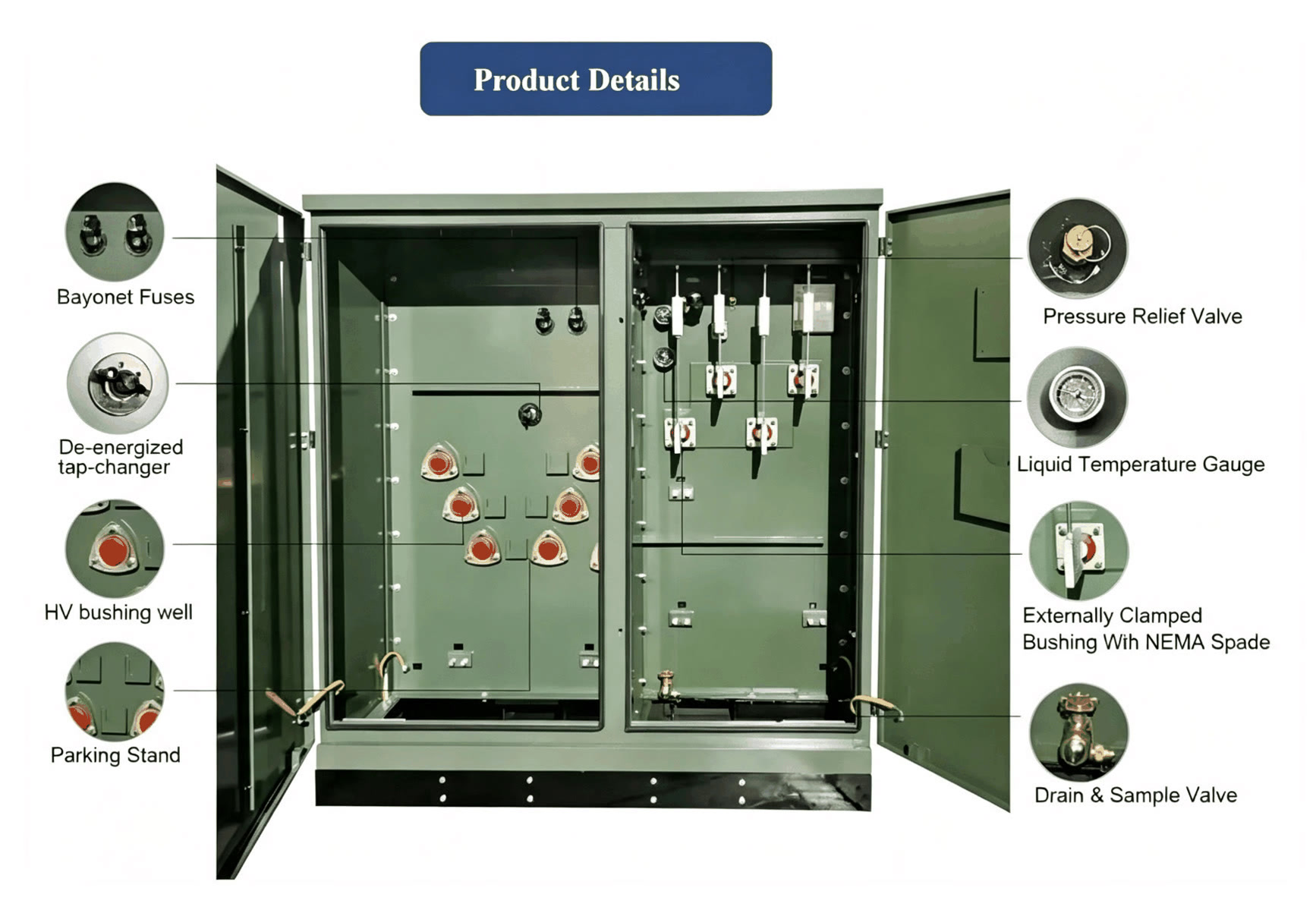

Security provisions center on a dual-barrier locking mechanism consisting of a captive penta-head security bolt coupled with a recessed padlock enclosure. This geometry restricts unauthorized entry using standard hand tools. High-voltage compartments incorporate dead-front construction compatible with 200A loadbreak or 600A deadbreak separable insulated connector bushings. Operating personnel can perform sectionalizing, circuit testing, and cable grounding with hot-stick apparatus while isolated from exposed conductive components. Low-voltage compartments provide adequate spatial clearance for multiple parallel service conductors, low-voltage spade terminals, and neutral grounding straps, facilitating installation across commercial shopping centers, healthcare facilities, and educational campuses.

Dielectric Performance and Thermal Characteristics of FR3 Ester Fluid

Liquid insulation serves a dual function within pad-mounted units, providing dielectric isolation between conducting winding layers while conducting thermal energy away from internal assemblies via thermosiphon natural circulation (ONAN). XIAOWEI equips three-phase pad-mounted transformers with natural ester vegetable oil, commercially designated as FR3 fluid. Natural ester dielectric fluid exhibits a fire point exceeding 300 deg C and a flash point above 275 deg C, compared to refined mineral oil which typically ignites around 160 deg C. This high fire point provides self-extinguishing thermal protection, supporting transformer installation adjacent to exterior building walls, indoor-adjacent courtyards, and dense commercial corridors where building safety codes require high-temperature fluid containment.

In addition to fire mitigation properties, natural ester dielectric fluid is formulated from renewable agricultural resources and exhibits complete environmental biodegradability under standard soil testing protocols. The ester chemistry maintains environmental stability during routine handling, reducing secondary containment complexity. The fluid chemistry also demonstrates a high capacity to absorb moisture from cellulose insulation paper, reducing thermal aging rates of the solid dielectric barriers and supporting insulation life under continuous full-load operating conditions. For standard suburban installations where specific ester requirements are absent, high-grade inhibited mineral oil meeting IEC 60296 is also supplied, maintaining fluid viscosity across sub-zero winter temperatures and elevated summer thermal cycles.

Magnetic Core Metallurgy, Copper Winding Geometry, and Energy Efficiency

Transformer operating efficiency governs long-term utility lifecycle expenditure and aligns with regional environmental regulations. XIAOWEI constructs three-phase pad-mounted transformer cores using high-permeability, grain-oriented cold-rolled silicon steel laminations. The magnetic core incorporates precision 45-degree full miter step-lap joints and a lapless upper yoke arrangement. This automated stacking geometry aligns magnetic flux paths with the natural orientation of the crystalline steel lattice, suppressing magnetic domain resistance, reducing stray flux generation, and lowering no-load excitation losses. Consequently, the operational audible noise level remains low, meeting municipal noise ordinances in residential neighborhoods.

The electrical windings feature 100% electrolytic copper conductors across both primary and secondary circuits, procured from verified metallurgical suppliers. Standard models, such as the ZGS-H-150/12.47/0.208 configuration rated at 150kVA, accept primary voltages of 12470GRDY/7200V and step down to a secondary utilization voltage of 208Y/120V at 60Hz. Configured in Dyn11 or Ynyn0 connection vector groups, circular copper coils provide high mechanical resistance against radial and axial electromagnetic forces generated during downstream external short circuits. Under 50% load conditions, the unit achieves an operating efficiency of 99.16%, comfortably exceeding United States Department of Energy (DOE) efficiency requirements while maintaining an average winding temperature rise within 55 deg C or 65 deg C limits.

Quality Verification Protocols and Independent Laboratory Testing

Operational dependability across utility networks requires rigorous factory acceptance verification before transport. Every three-phase pad-mounted transformer produced by XIAOWEI, spanning standard 150kVA ratings up to 5000kVA multi-megawatt industrial units with primary ratings up to 35kV, undergoes standard factory routine quality assessments. In-house inspection protocols cover winding resistance verification, voltage ratio checks, phase displacement validation, no-load loss and excitation current measurement, load impedance testing, and applied overvoltage dielectric withstand procedures.

Beyond internal quality testing, independent type testing certificates issued by KEMA 63000, TÜV Rheinland, SGS, and the Suzhou Electrical Apparatus Science Research Institute (EATL) confirm physical performance under electrical and mechanical stress. During formal type testing on a 5000kVA oil-immersed unit (model S-5000/13.8) at the national EATL laboratory, top oil temperature rise reached 40.3K against the standard 60K benchmark, while winding temperature rise measured 44.4K to 46.6K against the 65K allowance. Lightning impulse withstand tests at 95kV full-wave and 105kV chopped-wave levels confirmed complete dielectric margin without insulation breakdown. These verified testing results support equipment longevity across international utility installations where uninterrupted service is critical.

Direct Manufacturing Coordination and Technical Procurement Portal

Procuring three-phase pad-mounted transformers directly from a specialized manufacturing facility provides engineering contractors and utility operators with clear technical coordination, verified material traceability, and valid UL and CSA certification documentation. Direct factory engagement removes distributor layers, providing project engineers with transparent technical drawings, customized terminal pad configurations, specific external radiator dimensions, and coordination on specialized protection accessories such as bayonet fusing and under-oil partial range current-limiting fuses.

Drawing on 20 years of transformer manufacturing experience, XIAOWEI maintains structured quality control and scalable production capabilities to support North American utility modernization and commercial infrastructure expansion. To examine three-phase pad-mounted transformer technical specifications, review outline dimensional drawings, access third-party type test summaries, or request commercial quotations for utility installations, visit the official company portal: https://www.xiaoweipower.com. Detailed application reviews and engineering support remain accessible through the technical sales division, assisting project teams with regional grid compliance and custom distribution design.
